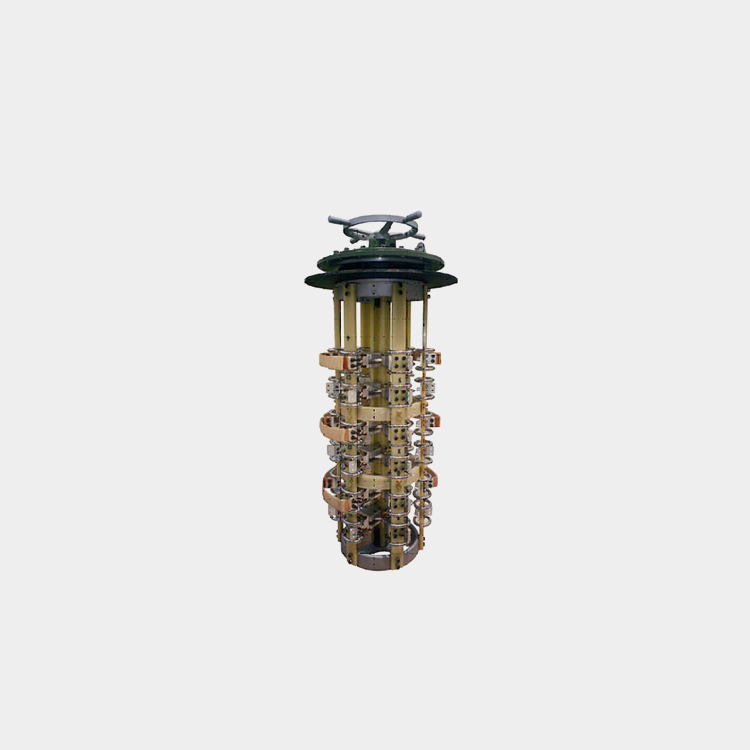

OLTC Type | WSL | WDL | |||
---|---|---|---|---|---|
Phase | 3 | 1 | |||
Max. rated through current Lum up to (A) | 4000 | 6000 | |||
Short circuit current test (kA) Thermal (3S) Dynamic (Peak) |
40 100 |
60 150 |
|||
The highest voltage for equipment Um up to (Kv) | 363 | 363 | |||
Max. operation positions | 11 | 11 | |||
Connection | Linear, single-bridging double-bridging, reversing star-delta, series-parallel |
||||
Operation mode | hand wheel on top manual driving mechanism at side motor driving mechanism at side |
