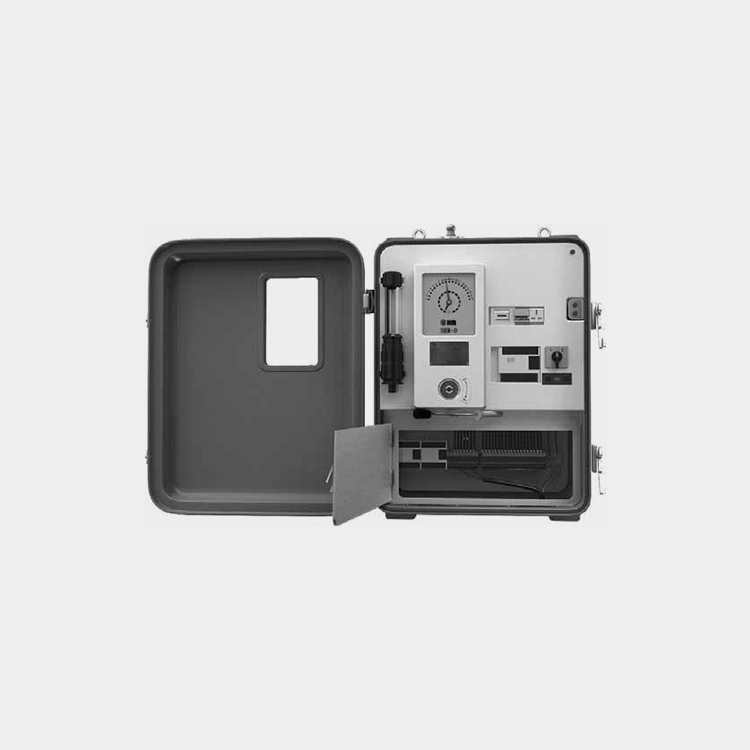

OLTC Type | CM | SHM-DL | CMA7 | |
---|---|---|---|---|
Rated voltage (V) | 220 V/AC | 380 V/AC | ||
Rated frequency (Hz) | 50 or 60 | |||
Rated power (W) | 750 | 750 | 1100 | |
Rated current (A) | 6 | 2 | 2.9 | |
Rated torque on drive shaft (Nm) | 25 | 18 | 26 | |
Revolution of the drive shaft per switching operation | 33 | |||
Revolution of the hand crank per switching operation | 33 | |||
Running time per switching operation (s) | Approx. 5 | |||
Max. operation positions | 107 | |||
Voltage for control circuit and heater circuit (V) | 220 V/AC | |||
AC voltage test to ground (kV/50Hz, 1 min) | 2 | |||
Approximate weight (kg) | 80 | 110 | 90 | |
Protective degree | IP66 | IP56 |
