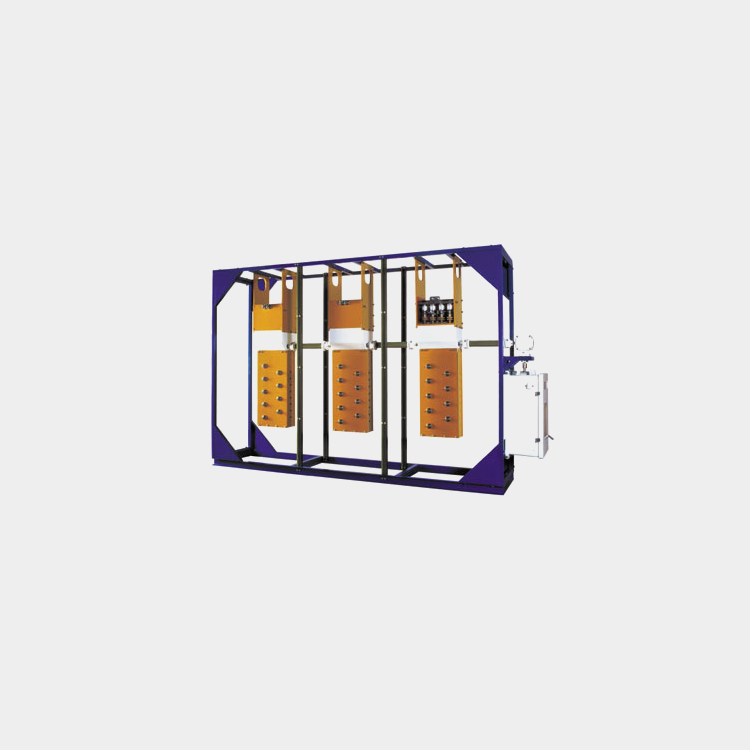

Vacuum Type OLTC For Dry Type Transformers

Vacuum Type OLTC For Dry Type Transformers

Cz

Technical Data Operating Instructions
OLTC Type CZ
Phase
3 1
Max. rated through current Lum up to (A) 500 500
Short circuit current test (kA)
Thermal (3S)
Dynamic (Peak)
5
12.5
5
12.5
Max. rated step voltage Uim(V) 900 900
Rated step capacity Pstn(kVA) 250 250
The highest voltage for equipment Um up to (KV) 72.5 72.5
Max. operation positions
Without change-over selector
With change-over selector
17
17
