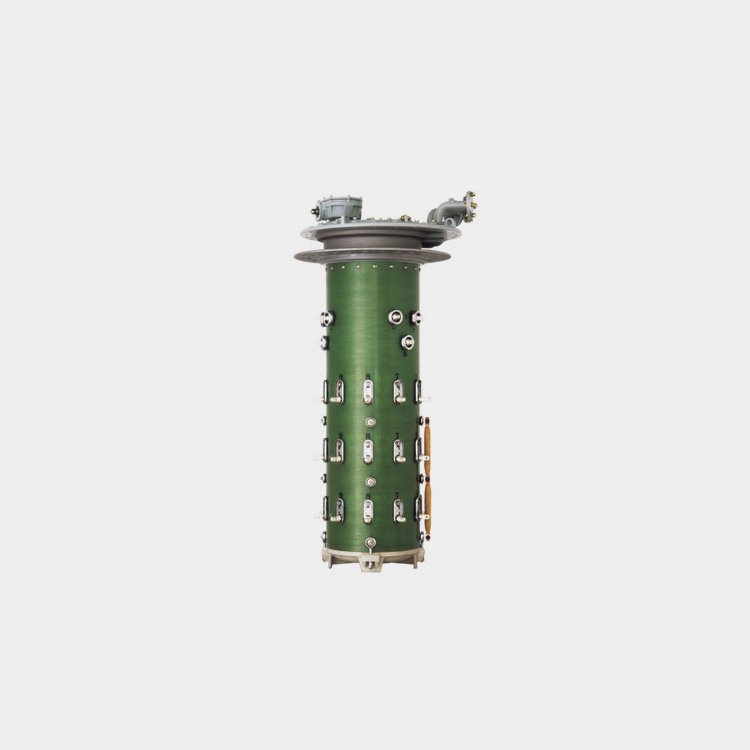

OLTC Type | CV & SV | |
---|---|---|
Phase | 3 | 1 |
Max. rated through current Lum up to (A) | 500 | 700 |
Short circuit current test (kA) Thermal (3S) Dynamic (Peak) |
7 17.5 |
10 25 |
Max. rated step voltage Uim(V) | 1500 | 1500 |
Rated step capacity Pstn(kVA) | 525 | 660 |
The highest voltage for equipment Um up to (KV) | 72.5 | 72.5 |
Max. operation positions Without change-over selector With change-over selector |
14 27 |
14 27 |
